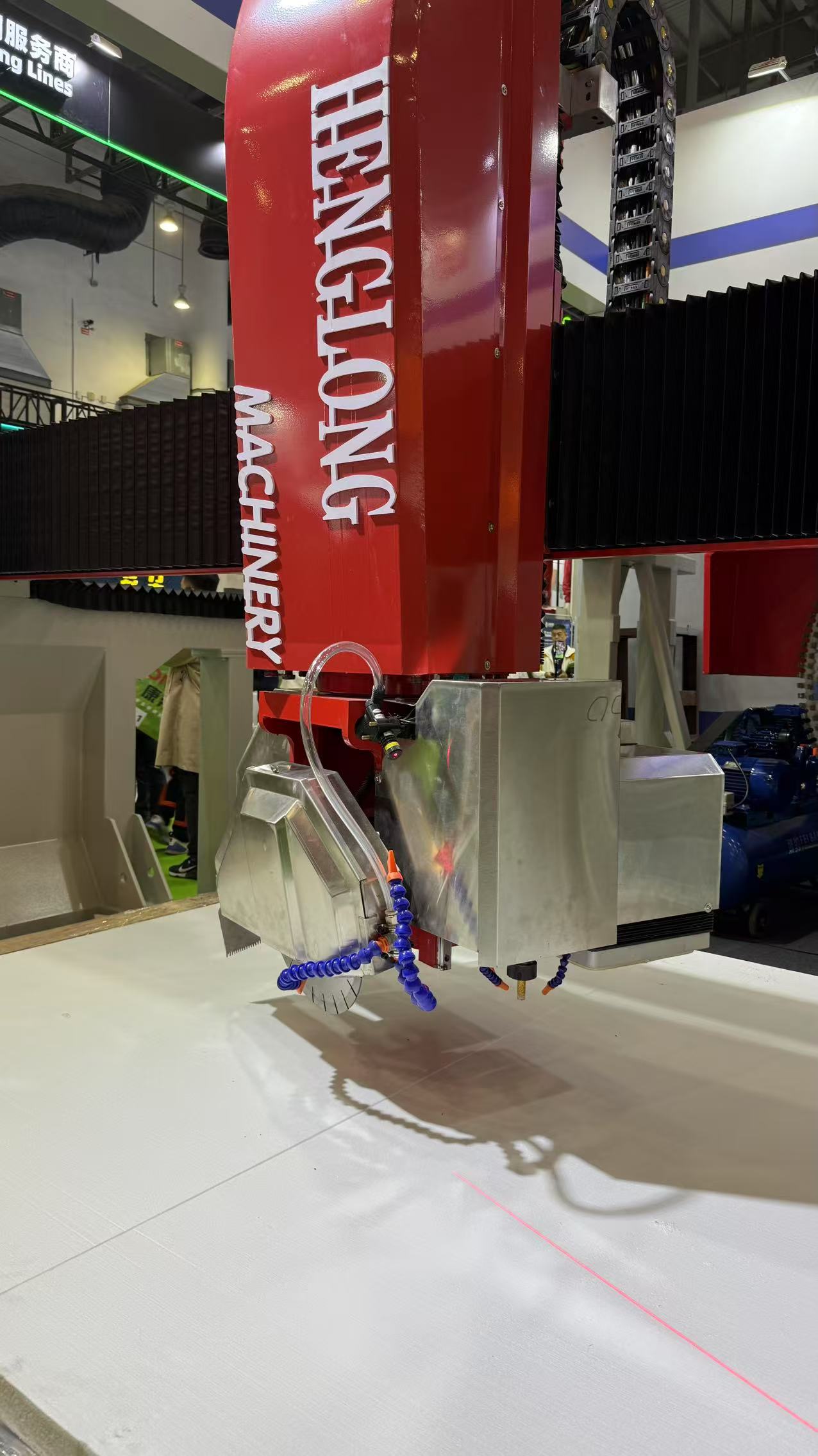

5 Axis Cnc Stone Cutting Machine Sink Hole Cutter

This 5axis cnc bridge cutting machine is an intelligent and high-efficiency bridge saw cnc cutting machine designed for precision stone processing.

Product Advantages

• Equipped with Italian Eureka-64 professional stone software, the 5axis cnc bridge cutting machine realizes diversified cutting including template cutting, multi-graphic combination cutting and complex shape processing for washbasins, stoves, arcs, polygons and special-shaped edges.

• As a stable and reliable bridge saw cnc cutting machine, it supports board thickness detection, copying, pattern arranging, automatic board alignment and intelligent tool path generation for tea trays and texts. It is capable of flat relief carving, camera photography positioning, sizing and combined cutting, greatly improving processing accuracy and efficiency.

• The 5axis cnc bridge cutting machine supports built-in drawing, batch import of AutoCAD files above 2015 version, as well as CAD, DXF and G Code import. Matching with HexcDesk remote control software, this bridge saw cnc cutting machine achieves intelligent, automatic and high-precision cutting, ideal for batch and customized stone processing in modern stone factories.

• The 5 Axis CNC Stone Cutting Machine is equipped with Φ400-450mm saw blades, 3200×2000mm working platform, max horizontal cutting length 3200mm, max cutting thickness 100mm, max lifting stroke 300mm, meeting various stone processing needs.

• Main motor power 18.5kw, reciprocating motor 1.8kw, crossbeam shifting motor 1.8kw, hydraulic station motor 2.2kw, total gross power 20.8kw, the 5axis cnc bridge cutting machine delivers strong power for continuous operation. Max vacuum lifting weight 500kg enables automatic slab handling, reducing labor intensity. Water consumption 2m²/h, overall dimensions 5800×3000×2765mm, gross weight 5400kg, the bridge saw cnc cutting machine features a stable structure and low failure rate.

Company Advantages

Founded in 2003, Fujian Nan'an Henglong Machinery Co., Ltd. has devoted nearly 20 years to the stone machinery industry. With profound industry accumulation, it has developed a mature operation capability integrating R&D and design, sophisticated production and global sales, making it a well-established professional stone machinery manufacturer in the industry.

Boasting a strong production base covering an area of over 20,000 square meters, the company is equipped with more than 10 high-standard modern production lines. Relying on standardized production management and advanced manufacturing equipment, it achieves an efficient annual output of more than 600 complete sets of complete equipment. Its robust and stable production capacity not only ensures on-time delivery of various orders accurately, but also easily undertakes large-volume customized production demands, completely solving customers' worries about order delivery.

In terms of technical R&D and quality control, the company has set up a core team composed of more than 10 senior professional R&D engineers. Centering on technological innovation, the team focuses on product performance optimization, intelligent upgrading and process innovation, continuously creating high-quality stone machinery products that adapt to market demands. Strict quality control runs through the entire production process. Many of its products have successfully passed a number of international authoritative certifications such as CE certification, ISO9001 Quality Management System Certification and ISO14001 Environmental Management System Certification, with product quality and environmental protection standards reaching international advanced levels.

The company's products are widely used in various stone processing scenarios such as marble and granite, thanks to their excellent stability and practicability, and are highly recognized by the market. Domestically, it has established long-term and stable strategic cooperative relations with many well-known domestic stone enterprises and foreign trade service providers; internationally, its products are exported to more than 20 countries and regions including Russia, India, Egypt, Kazakhstan, Saudi Arabia, Vietnam and South Korea. With reliable quality and excellent service, it has established a good brand reputation in the global stone machinery market.

All along, the company has always adhered to the business philosophy of "Quality First, Customer Supreme". Guided by customer needs, it has built a full-chain integrated service system covering R&D and customization, production and manufacturing, on-site installation and after-sales maintenance. It is committed to providing efficient, professional and considerate one-stop solutions for global customers, continuously creating long-term value for customers, and seeking win-win development with partners at home and abroad.

Technical Advantages

Technology exists to solve problems. R&D at Henglong is deeply rooted in the factory floor. Our engineering teams dive deep into every stage of stone processing, mastering core technologies like multi-blade synchronous cutting, bridge-type high-precision machining, and intelligent CNC control. We know customers care less about complex specs and more about stable cuts, minimal waste, and reliable operation. By selecting top-tier global components and integrating advanced control systems, we guarantee that every machine delivers exceptional stability and high efficiency in long, continuous operations, empowering our customers to build modern, sustainable production lines.

Pre-sales and After-sales Service

Service is about making cooperation simple. Henglong Machinery has built a responsive, professional service network with a global presence. We offer full-cycle support, from production planning and equipment selection to on-site installation, operator training, and spare parts support. We guarantee rapid issue resolution, ensuring every investment delivers maximum return. Partnering with Henglong Machinery means choosing a reliable, efficient, and down-to-earth long-term collaborator.

FAQ

Q1. What is the maximum cutting thickness of the HLYT-5Axis 5 Axis Cnc Stone Cutting Machine Sink Hole Cutter? Does it support automatic tool change for different stone specifications?

The HLYT-5Axis 5 Axis CNC Stone Cutting Machine has a maximum cutting thickness of 100mm, suitable for marble, granite and other stone slabs within 100mm. The equipment supports matching Φ400-450mm saw blade specifications, and is equipped with a 18.5kw main motor power support. When cutting stones of different specifications, there is no need to replace the tool rest additionally. As a 5axis cnc bridge cutting machine, it automatically adapts to cutting parameters through the CNC system, greatly improving processing efficiency.

Q2. What is the hole opening accuracy of the CNC Countertop Sink Hole Cutter function of this equipment? How to avoid stone chipping during hole opening?

The hole opening accuracy of the HLYT-5Axis CNC Countertop Sink Hole Cutter can be controlled within ±0.1mm, which fully meets the high-precision needs of countertop and vanity top processing. The equipment is equipped with a maximum lifting stroke of 300mm and a hydraulic station auxiliary positioning. During cutting, the CNC system accurately controls the saw blade running track. At the same time, a 2m³/h high-efficiency water cooling system is used for cooling, reducing high-temperature damage to the stone and avoiding stone chipping during the operation of the 5 Axis CNC Stone Cutting Machine, ensuring that the hole edges are flat and free of defects.

Q3. Can the 5axis cnc bridge cutting machine function of the equipment adapt to automated production lines? What is the operation efficiency of crossbeam shifting and cutter frame reciprocating?

The 5axis cnc bridge cutting machine function of HLYT-5Axis supports linkage with automated production lines, and can connect with stone loading, polishing and other equipment to realize full-process unmanned processing. Among them, the crossbeam shifting motor has a power of 1.8kw, with fast operation response speed, and the cutter frame reciprocating motor has a power of 1.8kw. Combined with the maximum horizontal cutting length of 3200mm, the bridge saw cnc cutting machine can efficiently complete multi-process cutting of large-size slabs. The heavy-duty body of 5400kg ensures stability during high-speed operation, adapting to the production needs of large-scale stone processing enterprises.

Q4. Can the equipment operate continuously for a long time without affecting its service life?

The equipment adopts a heavy-duty thickened body and high-end imported components, with excellent heat dissipation performance, which can support 24-hour continuous high-intensity operation, and reasonable maintenance will not affect the service life of the equipment.

Q5. Can the equipment size be customized according to the workshop area?

Support customizing parameters such as equipment outline size and feeding/discharging direction according to the actual area of the customer's workshop, tailor-made exclusive equipment suitable for the workshop without occupying excess space.

Q6. What payment methods are available?

We‍‌‍‍‌ definitely can accept payment via T/T, L/C, Western Union, etc. Usually, 30% deposit is required in advance, and the 70% balance is to be remitted before ‍‌‍‍‌shipment.

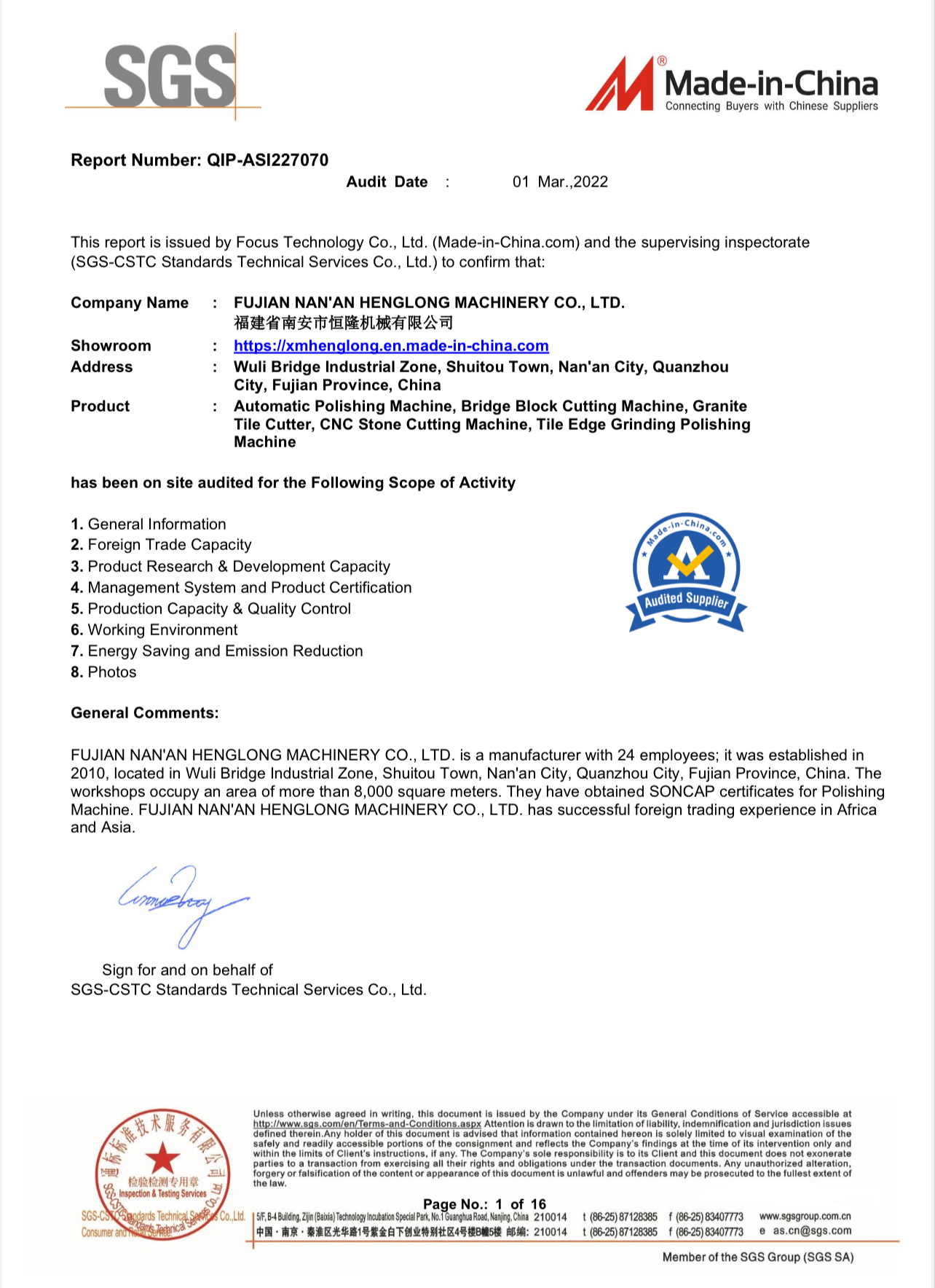

Authoritative Certification

With SGS and various professional certifications, our stone machines reach international first-class levels in quality, safety and environmental protection. Strict factory inspections and standardized production ensure stable processing performance for each machine, worthy of long-term trust from customers at home and abroad.
