Product Parameter Table
| Appellation | Unit | HLLD-2800 | HLLD-3000 | HLLD-3500 |
| Power of main motor | kw | 55 | 75 | 75 |
| Saw blade diameter | mm | 2800 | 3000 | 3500 |
| Cutting length | mm | 3500 | 3500 | 3500 |
| Cutting width | mm | 2300 | 2300 | 2300 |
| Lifting stroke | mm | 1400 | 1400 | 1450 |
| Lifting motor power | kw | 4 | 4 | 4 |
| Stroke motor power | kw | 4 | 4 | 4 |
| Longitudinal motor power | kw | 3 | 3 | 3 |
| Total Power | kw | 67 | 87 | 87 |
| Gross weight | kg | 12500 | 14000 | 18000 |
| Dimensions | mm | 8000*4500*4500 | 8500*4500*4500 | 8500*4500*4800 |

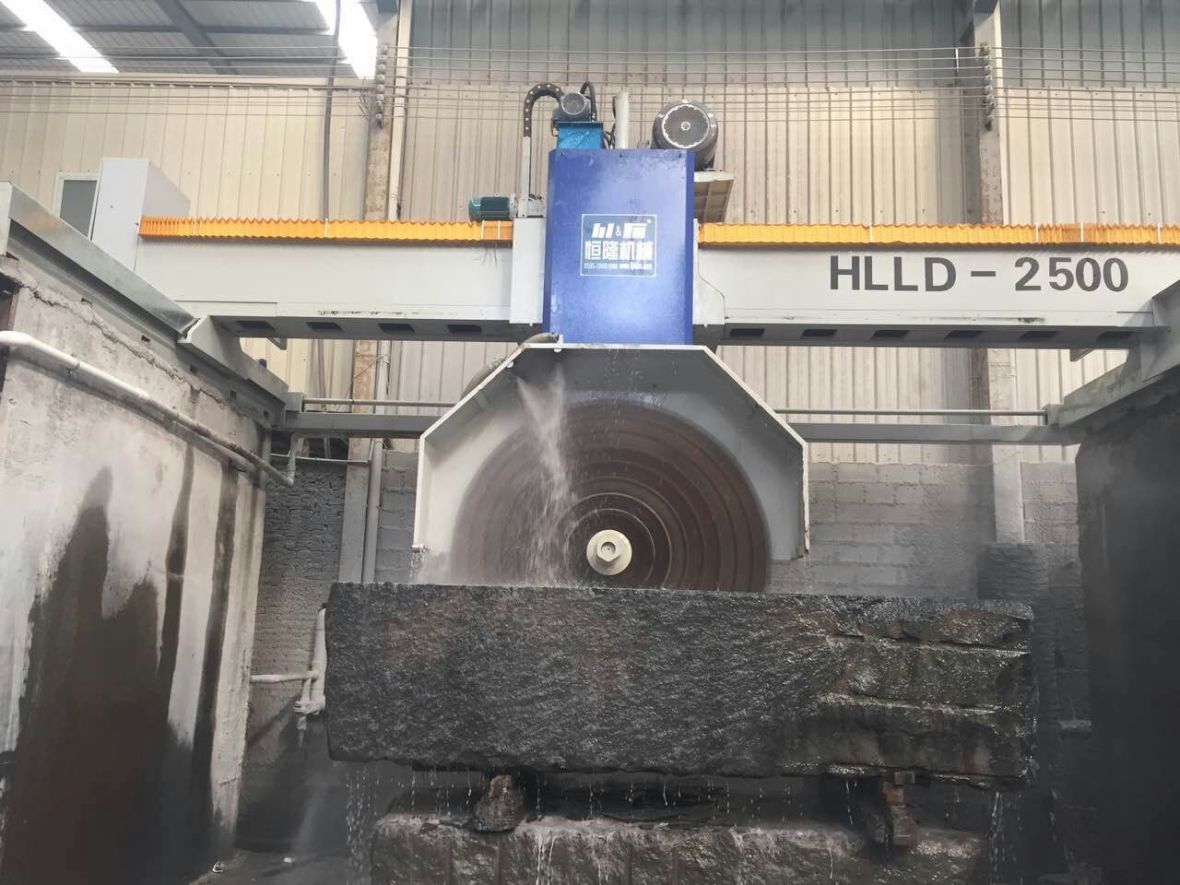

The HLLD Multi Blade Capability stone block cutting machine is a professional Bridge stone slab cutting machine and heavy-duty bridge type block cutting machine, designed for efficient and precise cutting of large stone blocks.
That is a professional Bridge stone slab cutting machine and heavy-duty bridge type block cutting machine capable of multi blade cutting of stone blocks, made for efficient and accurate cutting of big ones.
Product Advantages
Equipped with a multi-blade system, this Multi Blade Capability stone block cutting machine enables parallel processing, drastically increasing cutting efficiency compared to single-blade machines.
The integrated bridge structure provides superior rigidity, ensuring stable and smooth operation even when cutting high-hardness granite.
As a versatile Bridge stone slab cutting machine, it accommodates various block sizes and materials, delivering consistent precision.
This robust bridge type block cutting machine features advanced safety systems, user-friendly controls, and low maintenance costs, seamlessly integrating into modern stone production lines to optimize workflow and enhance overall processing efficiency.
Company Advantages
Founded in 2003, Fujian Nan'an Henglong Machinery Co., Ltd. has nearly two decades of experience in the R&D, production and sales of stone processing machinery. Spanning a total area of more than 20,000 square meters, the company runs over 10 state-of-the-art automatic production lines. It has an annual output capacity of over 600 complete sets of equipment. Thanks to our strong production capabilities, we can guarantee consistent order delivery and are fully equipped to handle large-scale custom orders, thereby effectively fulfilling the delivery requirements of our worldwide clients.
In terms of technology, the company has built a core R&D team composed of more than 10 senior professional engineers, who focus on product innovation, performance optimization and intelligent upgrading. By implementing rigorous quality control measures, our offerings have secured international authoritative certifications such as CE, ISO9001 Quality Management System, and ISO14001 Environmental Management System, which means that our quality standards are in perfect harmony with those of the international community.
Our products are largely employed in different types of stone processing projects, including marble and granite processing. We have signed long-term strategic cooperation agreements with a large number of well-known domestic enterprises and our products are exported to over 20 countries and regions such as Russia, India, Egypt, Kazakhstan, Saudi Arabia, Vietnam and South Korea. Our products have won a good reputation in the global market.
Going forward, adhering to the core business philosophy of "Quality First, Customer Supreme", Henglong Machinery is committed to providing global customers with one-stop integrated solutions covering R&D, customization, production, installation and after-sales service. We are dedicated to creating long-term value for our clients and jointly exploring new prospects for the stone machinery industry.
Quality Control
Quality is the key factor in delivery. Henglong Machinery is committed to providing premium quality assemblyin each part and process. We implement a stringent end-to-end qualitycontrol system from buying to both machining, assembling and testing. Werun a thorough performance test on every machine prior to shipping. We are convinced that high standards are not only our obligation to the product but also to our customers' operations. Henglong machines are always robust but also readily deployable and maintainable, thus your production schedule will be protected from unexpected downtime.
Corporate Social Responsibility
While developing the enterprise, Henglong Machinery actively fulfills its social responsibilities, adheres to the concept of green production, focuses on the research and development of energy-saving and consumption-reducing stone machinery and equipment, and helps the stone processing industry achieve low-carbon, environmental protection and sustainable development; at the same time, it actively undertakes corporate social responsibilities, cares for employee growth, participates in social public welfare undertakings, and realizes the harmonious coexistence of enterprises, society and the environment.
Pre-sales and After-sales Service
Service is about making cooperation simple. Henglong Machinery has developed a dynamic and professional service network worldwide. We provide full-cycle support - starting from production planning andequipment selection to installation, operator training, and spare partssupport. Besides, we ensure returning on your investment the maximum bysolving any issues at the earliest. Collaborating with Henglong Machineryresembles having a reliable, efficient, and humble long-term partner foryour business.
FAQ
Q1. What are the core processing capabilities and model differences of the HLLD series bridge stone block cutting machine?
The main differences between the three models (HLLD-2800/3000/3500) lie in the diameter of the saw blades (2800mm, 3000mm, 3500mm), while the range of main motor powers goes from 55kw to 75kw. Besides, all the models can cut a length of 3500mm and a width of 2300mm, with the maximum lifting stroke being 1400-1450mm. This equipment is capable of smoothly handling large stone blocks and can even be used with different sizes of raw stone.
Q2. What is the total power and structural weight of the equipment? Does it ensure stability during long-term operation?
The sturdy heavy-duty bridge frame and the stable counterweight (12500-18000kg) can endure high-load continuous cutting, and additionally, the vibration is reduced effectively leading to precision and stability in 24-hour operation.
Q3. What is the lifting and travel power configuration of the equipment? Can it handle thick slab deep cutting?
The 4kw lifting motor and stroke motor powers are maintained for all models, while the longitudinal motor is 3kw. The HLLD-3500 model, however, is capable of a 1450mm lifting stroke upgrade. When the 75kw main motor and 3500mm saw blade are combined, it really can master the deep cutting of over 1400mm thick slabs with strong performance.
Q4. What payment methods are available?
We definitely can accept payment via T/T, L/C, Western Union, etc. Usually, 30% deposit is required in advance, and the 70% balance is to be remitted before shipment.
Authoritative Certification
Our stone machinery is supported by SGS certification and a full range of professional qualifications, and it meets world-class standards in quality, operational safety and environmental performance.
By careful in-plant inspection and standardized manufacturing workflows, each piece of equipment offers stable and consistent processing performance that is recognized by customers worldwide.
Yes, we export stone machinery worldwide. We can customize voltage, plugs and conform to different country standards. We also provide customized machines and complete production lines based on your workshop size and capacity requirements.
Yes, our cutting, polishing, edge cutting and profiling machines are specially designed for marble, granite, artificial stone and other hard/soft stones. Parameters can be adjusted according to material hardness to ensure stable processing performance
Our standard models can process stone slabs with a width of 600–1200mm and a length up to 3200mm or more. Customized models are available for larger marble and granite slabs.
Our automatic polishing machine can reach a glossiness of 85–95 gloss units on marble and granite. The standard model processes about 30–60 square meters per hour with consistent and stable finish.
